Homogeneous case with Dirichlet boundary condition

Problem

We consider homogeneous case with Dirichlet boundary condition on the boundaries of the closed waveguide.

• The function $q(x_{1}, x_{2}) = 1$ is a constant function.
• homogeneous Dirichlet boundary condition on $\partial \Omega$.

Code

We load the packages we need.

using Ferrite
using ClosedWaveguideDispersion

Since we consider the homogeneous waveguide just like Tutorial, we also define the refractive index as a constant.

function n(x)
    return 1.0
end

n (generic function with 1 method)

Similarly, here are the parameters related to the periodic cell and the discrete Brillouin zone.

p = 1.0;
h = 1.0;
N = 100;

We need to implement a new function to impose the periodic boundary condition and the Dirichlet boundary condition.

function my_bdcs(dh::DofHandler; period=1.0)
    cst = ConstraintHandler(dh)

    # Periodic boundary condition on the left and right
    # side of the periodic cell
    pfacets = collect_periodic_facets(dh.grid, "right", "left", x -> x + Ferrite.Vec{2}((period, 0.0)))
    pbc = PeriodicDirichlet(:u, pfacets)
    add!(cst, pbc)

    # Set Dirichlet boundary condition on the top and bottom boundaries of the periodic cell
    dfacets = union(getfacetset(dh.grid, "bottom"), getfacetset(dh.grid, "top"))
    dbc = Dirichlet(:u, dfacets, x -> 0)
    add!(cst, dbc)

    close!(cst)

    return cst
end

my_bdcs (generic function with 1 method)

Set up the grid.

grid = setup_grid(lc=0.05, period=p, height=h)

Ferrite.Grid{2, Ferrite.Triangle, Float64} with 944 Ferrite.Triangle cells and 513 nodes

Basic steps needed by Ferrite.jl

ip = Lagrange{RefTriangle, 1}()
cv = setup_fevs(ip)
dh = setup_dofs(grid, ip)

# Set the boundary conditions
cst = my_bdcs(dh, period=p)

# Allocate the matrices
A = allocate_matries(dh, cst)
B = allocate_matries(dh, cst)

# Discretize the Brillouin zone
bz = collect(range(-π/p, π/p, N))

# Calculate the dispersion diagram
μ = calc_diagram(cv, dh, cst, A, B, n, bz, nevs=6)

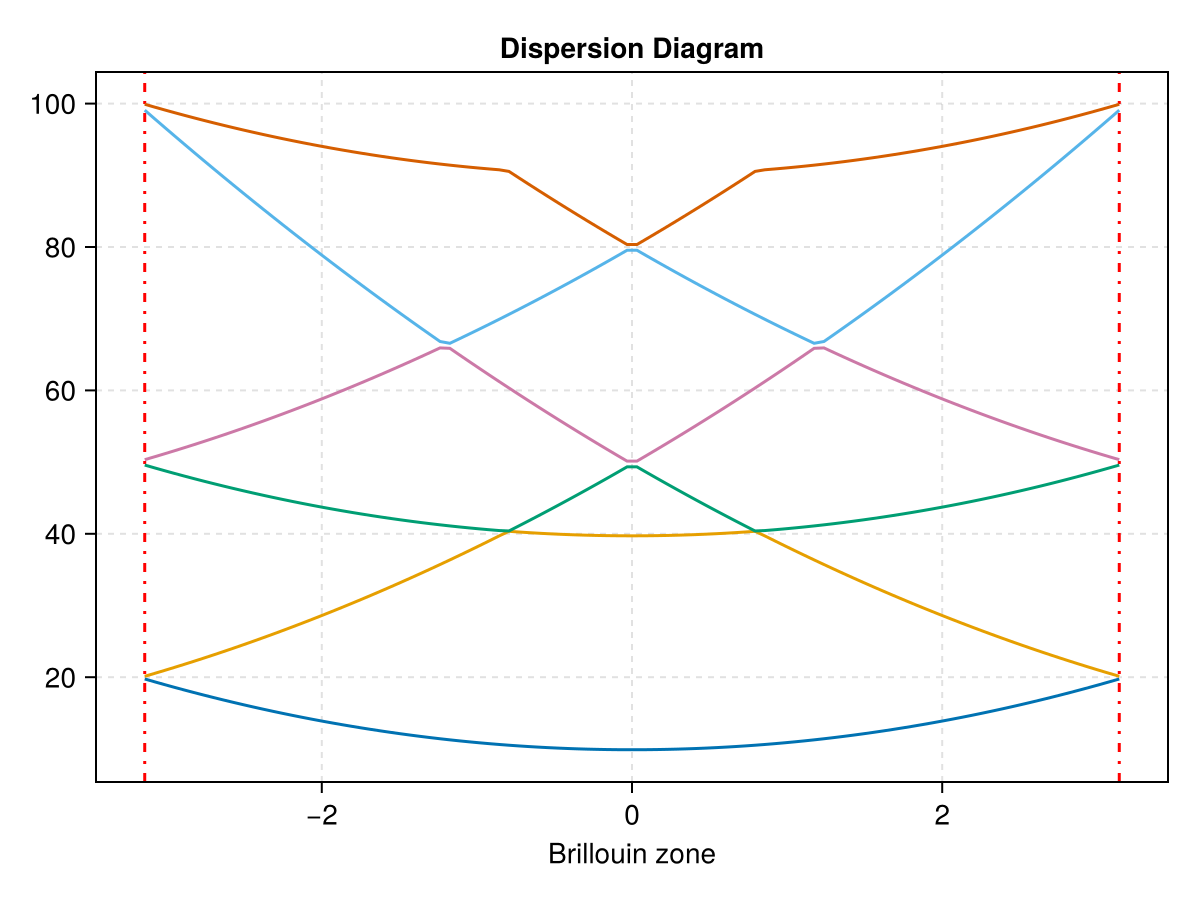

# Plot the dispersion diagram
plot_diagram(bz, μ, period=p)

Plain code

using Ferrite
using ClosedWaveguideDispersion

function n(x)
   return 1.0
end

p = 1.0;
h = 1.0;
N = 100;

function my_bdcs(dh::DofHandler; period=1.0)
    cst = ConstraintHandler(dh)

    # Periodic boundary condition on the left and right
    # side of the periodic cell
    pfacets = collect_periodic_facets(dh.grid, "right", "left", x -> x + Ferrite.Vec{2}((period, 0.0)))
    pbc = PeriodicDirichlet(:u, pfacets)
    add!(cst, pbc)

    # Set Dirichlet boundary condition on the top and bottom boundaries of the periodic cell
    dfacets = union(getfacetset(dh.grid, "bottom"), getfacetset(dh.grid, "top"))
    dbc = Dirichlet(:u, dfacets, x -> 0)
    add!(cst, dbc)

    close!(cst)

    return cst
end

grid = setup_grid(lc=0.05, period=p, height=h)
ip = Lagrange{RefTriangle, 1}()
cv = setup_fevs(ip)
dh = setup_dofs(grid, ip)
cst = my_bdcs(dh, period=p)

A = allocate_matries(dh, cst)
B = allocate_matries(dh, cst)

bz = collect(range(-π/p, π/p, N))
μ = calc_diagram(cv, dh, cst, A, B, n, bz, nevs=6)

plot_diagram(bz, μ, period=p)
